| Complete from Air Intake through Stack. Including Catwalks, Lube Oil Cooler, Controls and More. Power: 7.90 MW(e) (ISO zero loss). Heat rate: 11,773 kJ/kWh (11,158 Btu/kWh). Storage Preservation and Inspection Performed by the Manufacturer. Single-shaft. Quantity: (2) Packages. Year 2015/16. Alternator: HYUNDAI (Gen.) Electric Generator. Voltage – 6.9 kV / 60 Hz. Start system: Hydraulic Motor and Pump – AC Electric Motor Driven. Download Details: |
|
| 5.3 MW Cogeneration Plant, Solar Taurus 60 Turbine Generator, 60 Hertz, Fuel: Natural Gas, #2 Diesel. Engine Model T-7801. Generator rated for 12.47kV. Includes Rentech HRSG Boiler with Duct Burner; 50,000 Lbs/Hr.; 450 PSI; 500F Superheated Steam, with a Coen Supplemental Burner. The Complete Cogeneration System from Air Intake, and Ariel Natural Gas Compressor model JGN/1-1, Documentation, Through Support Steel, Catwalks. HRSG Boiler, Super Heater, Fuel Train, Duct Burner, SCR, and all Available Documentation. |
|

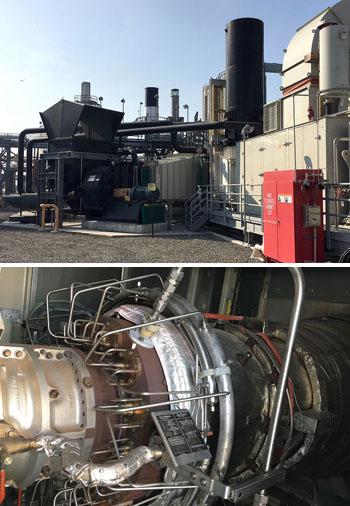

| Year 2015; 7.2 MW Solar Taurus 70 Gas Turbine, Engine Model T10801-SA So-Lo-NOx; 9000 KVA / 12.47kV / 60Hz Hyundai Ideal Generator. 165,000 Lbs/Hr. Cleaver Brooks HSRG, rated at 650F and 150 PSI Operating Pressure. Package has 13,313 hours and 250 Starts. Maintained and put into long term storage by Solar. Includes Guillotine for turbine isolation. Boiler will operate at full capacity of 165k PPH on gas fire only with 450 HP FD Fan. Complete drawings and service records available. |
|

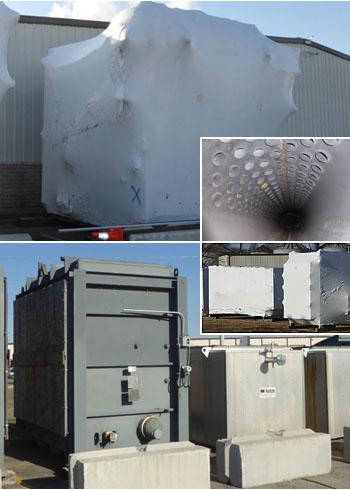

| 50,000 Lbs/Hr. Rentech HRSG; 450 PSI; 500F Superheated Steam, with Coen Duct Burners. Sized for a Taurus 60 Gas Turbine or Similar. Complete HRSG System: Boiler, Duct Burner, Super Heater, SCR, Economizer, Fuel Train with Controls, Support Steel, Catwalks, Grating for HRSG's. Refurbished in 2015 / Never reinstalled. Retubed Superheater, New refractory in Duct Burner; Economizer and Boiler sections cleaned & tested by the Manufacturer. Fuel train looks new or refurbished. |
|
| 4.0 MW Elliott Steam Turbine Generator, Complete with Lube system, Control Panel, and Ideal Rated for 5000kVA / 12.4kV / 60HZ Power. Inlet Pressure 650 PSIG, Inlet Temp 750F, Exhaust pressure 150 PSIG. Max Inlet Flow: 130,000 Lbs./Hr. |
|

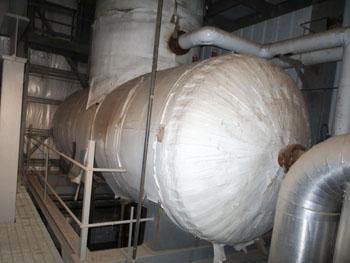

| 157,000 Lbs/Hr. Tray Type Boiler Deaerator by Penn Manufacturing. Top Section: 6 ft dia. x 5 ft H; Storage Section: 6'-6" dia. x 16' L. Tank is 19'-10" OAL. 4000 Gal. Capacity. Shell: CS - SA-516-70; Trays: SS430. Designed Capacity Flow of 157,714 lb/hr. |
|
| 27,587 Lbs/Hr. (800 BHP), 290 PSIG MAWP, Rentech WaterTube Heat Recovery Boiler. Unused Surplus, Never Installed. MAWP: 290 PSIG/FV; Design Temperature 500°F; Dims: 23'-6" L x 8'-3/4" W x 13'-3" H. Year 2012. |
|
| Rebuilt, Quantity of Two (2) available. Pressure Steam Turbine Power: 1350 HP; Inlet Steam Pressure: 600 PSI. Steam Temp: 750 F. |
|
|
|
|
|
|
