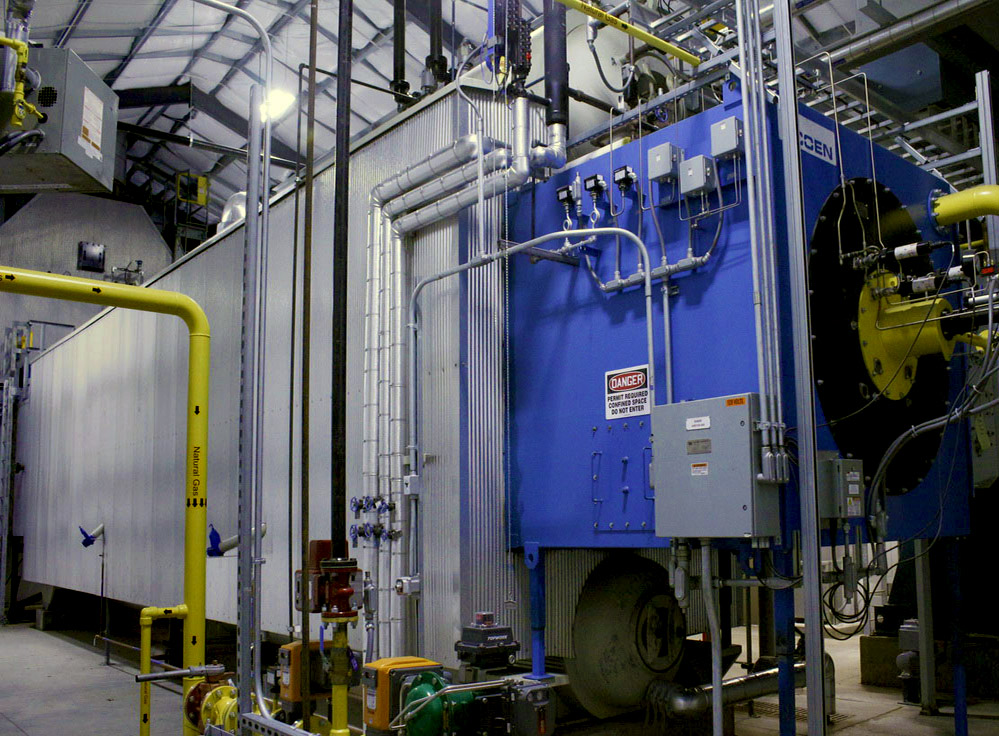

Industrial Steam Boilers

160,000 lbs/hr Rentech Boiler, 400 PSI Design, 700°F Super-heated Steam, D-Type Boiler. Quantity (2). Includes Boiler Trim & Valves, John Zink Burner, Low NOx, Natural Gas Fuel with FD Fan, Economizer, Silencer, Stack, Catwalks, Ladders and associated piping. New in 2015.

103,500 lb/hr ABCO Boiler; 200 PSI Design; Saturated Steam. Used as back-up boiler / auxiliary to cogeneration system. Produced superheated steam at 90,000 PPH and 426°F. D-Type Boiler Includes all boiler trim & valves, Coen Mod. 675 Low NOx Burner, Dual Fuel (NG / #2), with FD Fan and flue gas return; Economizer, Stack, Catwalks, Ladders and associated piping. All available documentation / drawings included. Boiler has very low hours for its lifetime serving as an auxiliary boiler for a peaking power station. Year of Mfg. 1991.

214000 Lbs/Hr. Cleaver Brooks / Nebraska; Natural Gas Water Tube Boiler. Rated for 450 PSI Design Pressure; 650 F Design Temp; 360 PSI Operating Pressure; 590 F Operating Temp with 227F Feedwater Temperature.

Fuel: Natural Gas at 285mm BTU/hr. 8 to 1 Turndown. Low NOx burner. Year 2011 / Installed 2013.

Only has 80 Hours of use in service testing. Includes Deaerator; All controls; FD Fan; Economizer and Stack.

Weight: 142423 Lbs Dry

Dimensions: 42’-6.5” L x 12’-10.5” W x 15’-11” H

90,000 #/Hr Victory Boiler, Model VS-5-78SP-SH; 837 PSIG Operating Pressure; 526°F Temperature; Year 2018 with COEN Natural Gas, Low NOx Burner. One (1) Shop Assembled Voyager Steam Generator; Heating Surface: Total 7344 Sq.Ft.; Superheater Surface: 980 Sq.Ft.; MAWP: 950 PSIG @ 650°F; Operating Pressure: 837 PSIG @ 526°F; Hydrostatic Test: 1425 PSIG. Feedwater Temperature: 227°F @ Control Valve; Fuel: Natural Gas; Installation: Outdoors; Empty Weight: 186,900 Lbs.; Flooded Weight: 232,000 Lbs.

6745 kw Siemens SST-110 Steam Turbine Generator, Year 2018. Single Stage Back Pressure Turbine Design. Inlet Steam: 90,000 #/hr Steam at 850 PSI and 650 F. Exhaust Steam: 90,000 #/hr at 46 PSI and 375 F. Exhaust Steam Pressure is variable depending on process conditions. Includes: 8750 KVA AC Synchronous Generator Manufactured by TD Power Systems, Type TC150. Capacity: 7.0 MW / 13.8kV / 60 Hertz. Year 2018. System used less than one year due to complete plant closure. All controls and MCC panels are available. Desuperheater is available to control exhaust steam temperature. SPARE TURBINE ROTOR ASSEMBLY INCLUDED.

800 HP Cleaver-Brooks Firetube Boiler; Model CBI-700-500-150; Year 2000; 150 PSI MAWP; Natural Gas Burner; Oil Pump; 15 HP Blower Motor, 480 V, 60 Hertz, 3-Phase. Pumps Available Separately.

100000 Lb/Hr. Complete Steam Plant. Includes Two (2) 50000 PPH Babcock & Wilcox Package Steam Boiler 250 PSI Water Tube D-Type Design. 250 PSI @ 406 degrees F temperature. Heat Side 3763 SqFt Water Wall 647 SqFt. Boiler has been re-tubed with low hours. Upgraded with Coen burners Model BMS 2000 20D-12440-1 with flame safety system #6 oil or natural gas fired with 10% flue gas recirculation. Coen 2000 burner control system with PLC operators station. Control system standard features include dual flame safe guard first out annunciator NEMA 4 rating U.L. Approved components CSA Approved components Water Column relays Scanner meters Dual fuel capability with low fire fuel changeover. Boiler is skid mounted design. One (1) Boiler of Two (2) available. The entire plant is in good condition with DA Tank #6 Fuel Oil Heater Water treatment Boiler Feed Pumps PLC Controls and more. 100000 Lbs/Hr. steam Total steam plant capacity.

50000 PPH Babcock & Wilcox Package Steam Boiler 250 PSI Water Tube D-Type Design. 250 PSI @ 406 degrees F temperature. Heat Side 3763 SqFt Water Wall 647 SqFt. Boiler has been re-tubed with low hours. Upgraded with Coen burners Model BMS 2000 20D-12440-1 with flame safety system #6 oil or natural gas fired with 10% flue gas recirculation. Coen 2000 burner control system with PLC operators station. Control system standard features include dual flame safe guard first out annunciator NEMA 4 rating U.L. Approved components CSA Approved components Water Column relays Scanner meters Dual fuel capability with low fire fuel changeover. Boiler is skid mounted design. Two (2) available boilers (See IEN #126097). Part of complete Steam Plant in very good condition with DA Tank #6 Fuel Oil Heater Water treatment Boiler Feed Pumps and more. 100000 Lbs/Hr. steam Total steam plant capacity.

655 kW Steam Turbine with Generator. System includes, Dresser-Rand Coppus RLHA 24 Turbine, Marathon Synchronous Generator, and Lufkin Speed Reducing Gearbox. Year 2013. Turbine Generator Skid: A common steel base is provided for the turbine, speed reducing gear and generator. The turbine and gear are coupled with a Lovejoy flexible stainless steel disc spacer type coupling, dynamically balanced to a maximum 2.5 mm/sec of vibration and meeting ISO G2.5. The generator and gear are coupled with a Lovejoy gear-type coupling with a 1.5 service factor. Coupling guards are installed over both couplings. Skid piping includes all piping necessary to collect condensate drains, steam leak offs and instrument air to single field connection point. Manual globe valves are installed in condensate drain lines for startup condensate removal. Skid wiring includes all conductors and conduit necessary to consolidate terminations for all skid instrumentation and control devices in a common terminal box.

70000 Lbs/Hr CS Deaerator System Manufactured by Cleaver Brooks Model Spray Master SM70-1400; Year Built 2002. Available Immediately As-is Where-is.

50,000 Lbs/Hr. Bio-Mass Gasification / Steam Boiler System, Integrated by Siemens. Capacity: 50,000 Lbs/Hr. Saturated Steam at a Design Pressure of 150 PSIG. Fuel Consumption: 3.0 Tons/Hr. Blended Waste (Wood Flour and Shredded Polyester), or 5.0 Tons/Hr. Wood Flour. Total Energy: 59.30 – 76.57 MMBtu/hr. The PRME® Gasification Technology is fixed grate, up-draft, sub-stoichiometric and multi-zoned gasification system. A staged combustion process results in hot clean waste gases, which are then used to generate steam for plant consumption, and a waste stream of approximately 300 Lbs./Hr. of Ash. The Primenergy L.L.C. Gasification System includes equipment, instruments and controls designed for the Gasification of carpet waste / wood flour fuel for Syngas delivery to the Energy Recovery boiler. The Gasification System includes: Fuel Bucket Elevator; Reactor Infeed Rotary Airlock; Reactor Infeed Screw; PrimeEnergy KC- 17 Gasifier; Startup Gas Burner; Reactor Underfire Air Fan. According to the manufacturer the PrimeEnergy Gasification process is suitable for wood and wood waste, processed municipal solid waste (RDF), agricultural residues, paper mill sludge, wastewater treatment sludge. Offered separately for this system is a 400 HP Industrial Shredder, Granutech-Saturn Systems Model# M240H, 460V/3PH/60Hz. Chamber Size: 95” x 100”, Rotor Diameter: 20”. Formerly Used on Carpet. Manufacturer states that this model shredder is effective for Plastics, Fiber, Thin Film, Rigid Scrap, Carpet, Medical Waste, Product Destruction, Pallets, Document Destruction. Includes Hydraulic Pump Skid, Feed Conveyor, and was running until shutdown due to process change.

1500 HP Hurst Boiler Biomass Cogeneration System with 1.0 MW Erie Steam Turbine. Hurst Boiler Capacity: 51750 Lbs/Hr.; Boiler Surface Area: 9750 Sq.Ft.; Design Pressure: 450 PSI; Model: HYD9750-450-1; Year 2009. Reciprocating Grate style Hurst Combustion Stoker Design. According to Hurst the reciprocating grate-type stoker system permits biomass fuels to be combusted in an efficient manner with the added advantage of automatic de-ashing; and Fuels include: Agricultural biomass wood bark agave fiber rice husk chicken manure sugar cane bagasse king grass MSW construction debris nuts shells husks paper card/board products hog fuel sawdust shavings and/or sludge. This is a complete system with feed conveyors boiler fuel metering DA Tank and Feedwater pumps Steam turbine controls wet ash disposal economizer ducting filter bag houses controls and wiring and (1) fabricated boiler feed storage silo.

500 HP Johnston 4-Pass Wet Back Boiler 150 PSI Fuel: NG / #2 Oil / #6 Oil Low NOx (30ppm) Burner. Year 2001.

500 HP Cleaver Brooks 4-Pass Dry Back Boiler 150 PSI Fuel: NG / #2 Oil Low NOx (30ppm) Burner. Year 2008.

Two (2) Superior Boilers 1200 HP and 800 HP Available Together. 1200 HP Superior Steam Boiler with Dual burners for Nat. Gas and #2 Fuel Oil; Model 6-5-6000 Heating Surface Area: 6000 Square Feet; Capacity: 41400 Lbs./Hr. Steam; Year 1998; Boiler was overhauled and reinstalled in good condition in 2007 and has seen only test hours since. 800 HP Superior Steam Boiler with Dual burners for Nat. Gas and #2 Fuel Oil; Model 6-5-4000 Heating Surface Area: 4000 Square Feet; Capacity: 27600 Lbs./Hr. Steam; Year 1993; Boiler was overhauled and reinstalled in good condition in 2007 and has seen only test hours since. Can include DA Tank and Condensate Return Tank and Feedwater Pumps.

80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler Design Pressure: 250 PSI Year 1998. Natural Gas Fired Coen DFL-600 Burner Boiler Surface Sq.Ft.: 6474. Includes ERI Economizer Stack FD Fan and Motor. Boiler Design Capacity: 100000 Lbs/Hr. is limited by Burner / Fan size to 80000 Lb/Hr. All Available Drawings and Engineering Included. Feedwater Pumps and DA Tank Available Separately. Three (3) Identical Boilers Available as part of Complete Steam Plant.

74500 Lb/Hr. Nebraska Boiler Model: NS-E-66 Water Tube Boiler Design Pressure: 250 PSI Year 1993. Natural Gas Fired Boiler Sq. Ft.: 4873 Economizer and Stack Included. DA Tank and Feedwater Pumps Available Separately.

251000 PPH Deltak HRSG designed for GE LM6000 Gas Turbine Generator. New in 2002. Quatity (2). Unused Surplus. 251000 Lbs./Hr. Steam at 950 PSI / 750 deg. F (Fired with Duct Burner). With Low Pressure Drum Capacity of 32000 Lbs./Hr. Steam at 72 PSI / 370 deg. F (Fired). (2) Complete Systems. As originally delivered packages to include: Duct Burner – Natural Gas Fired; HP Superheater; HP Desuperheater; HP Boiler; HP Economizer; LP Superheater; LP Boiler; LP Economizer; Duct Burner Elements; Feedwater Control Valve with Isolation & Bypass Valves; Feedwater Flow Element; Superheater Start Up Valves; Superheater Drain Valves; Desuperheater Stop Valves; Exhaust Expansion Joint; Inlet Gas Ducts; HP Steam Drum & Support Structure; LP Steam Drum & Support Structure; Boiler Trim; Motorized Valves; Walkways & Platforms; Outlet Expansion Joint; Outlet Stack and Transition; Outlet Stack EPA Connections; Outlet Stack Damper with Motor Actuator; HP & LP Boiler Steam Sparging lance with stop valve; Gas Train Fuel Piping Skid; Flame Management System; Feedwater Stop Valves.

77,000 Lb/Hr. Nebraska Boiler Model: NS-E-63; MAWP: 300 PSI; Year 1996. Low NOx Coen Burner. BMS 2000 Burner Controls. Natural Gas Fired; Water Tube Boiler Design; Surface Area: 5346 Sq. Ft.; Economizer and Stack Included. DA Tank and Feedwater Pumps Available Separately.

WHRU – Rentech Hot Water Boiler rated for 690,000 lbs. water an hour (1,377 GPM). A combustion exhaust stream is used to heat approximately 690,000 pounds of water per hour from 170 °F to 225 °F at an ambient condition of 55 °F. Designed for use with a Solar Turbines, Taurus 70 Gas Turbine Generator.
